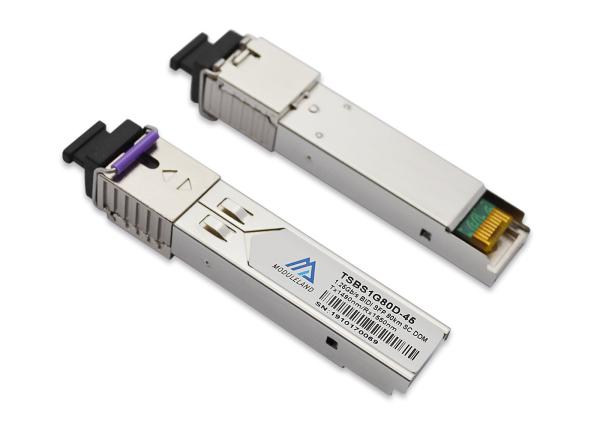

2.5Gb/s 80Km SC BiDi 1490nm /1550nm, DFB-LD&APD
1. Features:
Up to 2.67Gb/s Data Links
Hot-Pluggable
Single SC connector
Up to 80 km on 9/125μm SMF
1490nm DFB laser transmitter
1550nm APD photo-detector
Single +3.3V Power Supply
Monitoring Interface Compliant with SFF-8472
Maximum power dissipation <1W
Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
RoHS compliant and Lead Free
2. Applications:
SONET OC-48 / SDH STM -16
SONET OC-12 / SDH STM -4
SONET OC-3 / SDH STM -1
Gigabit Ethernet
1x/2xFibre Channel
3. Description:
Moduleland’s TSBS2G80D-45 Transceivers are a high performance, cost effective module which have a Single SC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a APD receiver and the transmitter uses a 1490 nm DFB laser, up to 26dB link budge ensure this module SONET OC-48 / SDH STM -16 80km application.
4. Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section: |
| Center Wavelength | λc | 1470 | 1490 | 1510 | nm | |
| Spectral Width | σ | | | 1 | nm | |
| Side Mode Suppression Ratio | SMSR | 30 | | | dB | |
| Optical Output Power | Pout | -2 | | +3 | dBm | 1 |
| Extinction Ratio | ER | 8.2 | | | dB | |
| Optical Rise/Fall Time | tr / tf | | | 260 | ps | 2 |
| Relative Intensity Noise | RIN | | | -120 | dB/Hz | |
| Total Generated Transmitter Jitter (peak to peak) | JTXp-p | | | 0.07 | UI | |
| Total Generated Transmitter Jitter (rms) | JTXrms | | | 0.007 | UI | |
| Eye Mask for Optical Output | Compliant with eye mask Telcordia GR-253-GORE | |
| Receiver Section: | |
| Optical Input Wavelength | λc | 1530 | 1550 | 1570 | nm | |
| Receiver Overload | Pol | -9 | | | dBm | 3 |
| RX Sensitivity | Sen | | | -28 | dBm | 3 |
| RX_LOS Assert | LOS A | -45 | | | dBm | |
| RX_LOS De-assert | LOS D | | | -29 | dBm | |
| RX_LOS Hysteresis | LOS H | 0.5 | | | dB | |
| General Specifications: |
| Data Rate | BR | 155 | | 2667 | Mb/s | |
| Bit Error Rate | BER | | | 10-12 | | |
| Max. Supported Link Length on 9/125μm SMF@2.5Gb/s | LMAX | | 80 | | km | |
